Design and manufacturing according to codes, rules and customer specifications
- Pressure range up to 550 bar (10 000 PSI flanges according to API 6A)
- Design temperature from -50 to +200 °C
- Atex Zone 1, Zone 2 components
- NACE MR01/75 components
- Filtration down to 3 µm
- Frame in carbon or stainless steel
- Piping in stainless steel (304L, 316L, 321, …), low temperature carbon steel, duplex, inconel or sanicro
- Tubing with double ferrule fittings
Tests on request :
- Flushing according to API 614
- PMI (Positive Material Identification)
- Non destructive test
- Hydrostatic test (900 bar max)
- Nitrogen leak test (700 bar max)
- Painting pull off test according to ISO 4624

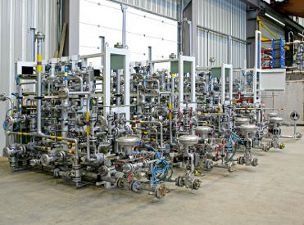

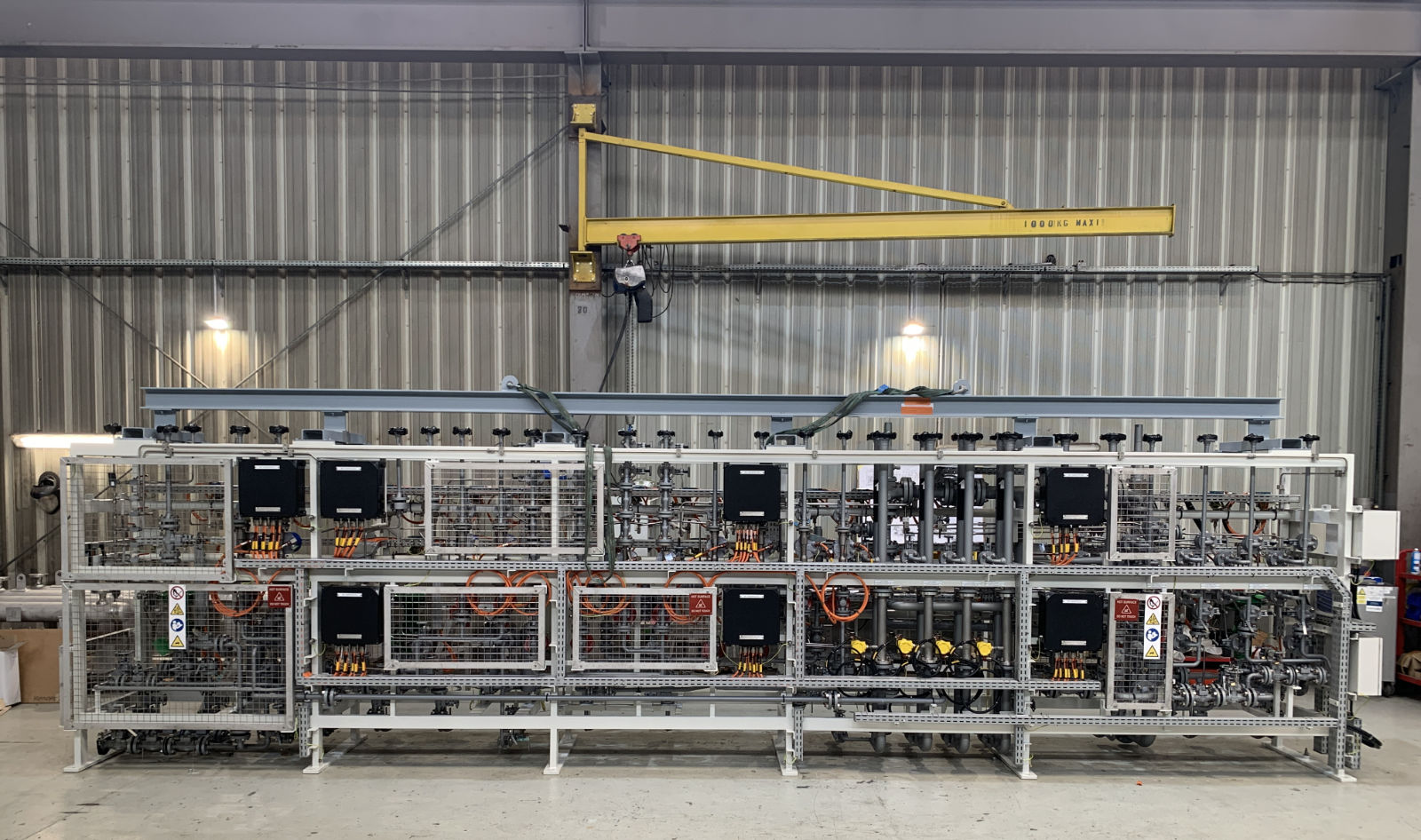

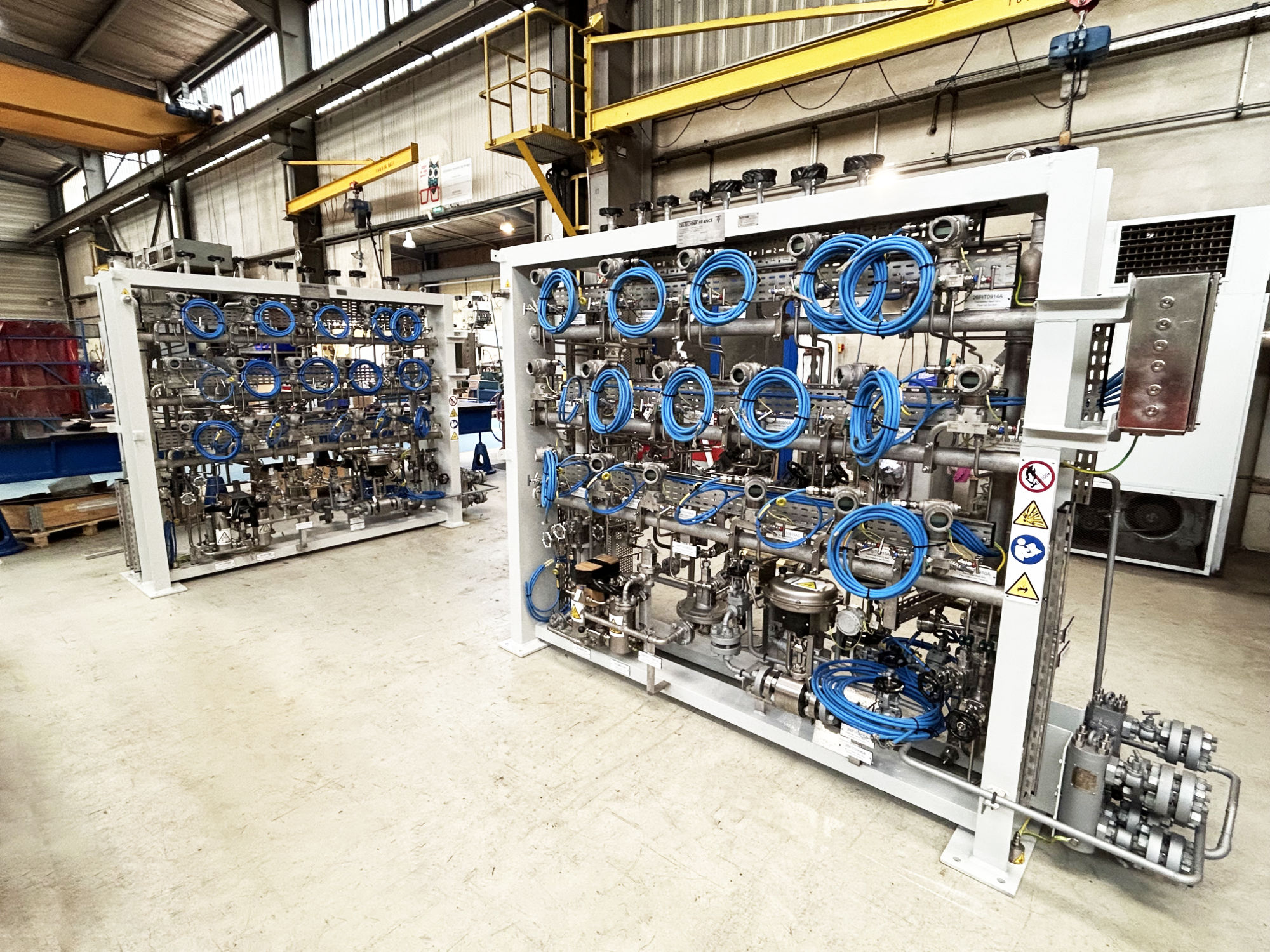

Our realizations of seal gas panels:
 |
 |
 |
Double seal gas panel over 5 meters width |
Specific realizations :
 |
Sunshades for instruments |
 |
Duplex filter with double block and bleed valves |
 |
Removable and orientable instruments for rail mounting |
 |
Double block & bleed valves |
 |
Electric wiring and global tagging |
 |
Instruments installed in a heated cabinet |
 |
High pressure connection Grayloc type |
Recent projects
- Shah gas - Abu D'habi
- Ichthys - Australia
- Conoco Britannia - North sea
- Chevron Wheatstone - Australia
- Bumi Armada - Australia
- Pemex - Mexico
